INNO-M (흡광 + 발광)

MICROPLATE READER

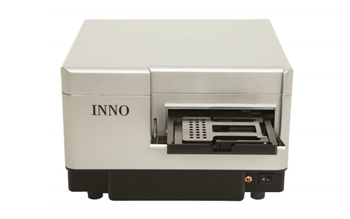

INNO 본체

NANO-V

2ul 볼륨 정량 플레이트(24well)

SPECIFICATION

Absorbance
Wavelength Accuracy±2 nm
Electrical RequirementsINPUT 100 to 240V 50/60Hz / (65W Adaptor)
Microplate type6 ~ 384 well plate
DetectorPhotodiode
Light sourceXenon flash
Wavelength Range200 to 999 nm
Wavelength selectionMonochromator
ApplicationWavelength scanning, end point, Kinetic, Area scan
Dynamic range0 ~ 4.0 OD
OD accuracy0 ~ 2 OD ±1%
OD linearity0 ~ 2 OD ±1%
OD repeatability0 ~ 2 OD ±1%
ShakingTwo step speed
DNA/RNA Micro Volume plate (NANO-V)24well / 2ul Sample (Option)
Weight7.5kg
Size333x303x245
SoftwareINNO X (Windows Software)
Supported software regressionLinear, Quadratic, Cubic, Log, Exponential, Linear logarithmic, point-to-point, 4PL
Luminescence
DetectorPhotomultiplier (PMT)
Wavelength range300 – 700nm
Peak Wavelength420nm
Limit of Detection (moles)3x10-21 moles
SoftwareINNO X (Windows Software)
Supported software regressionLinear, Quadratic, Cubic, Log, Exponential, Linear logarithmic, point-to-point, 4PL
Weight8kg
Size333x303x245
