INNO (흡광 전용)

MICROPLATE READER

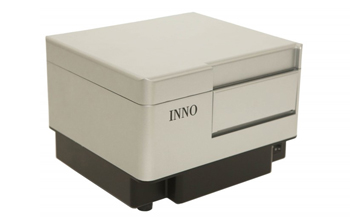

INNO 본체

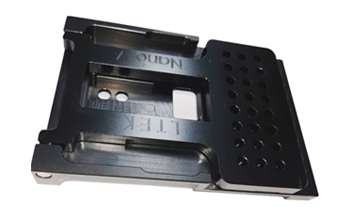

NANO-V

2ul 볼륨 정량 플레이트(24well)

SPECIFICATION

Absorbance
Wavelength Accuracy±2 nm
Electrical Requirements±2 nm
Microplate type6 ~ 384 well plate
DetectorPhotodiode
Light sourceXenon flash
Wavelength Range200 to 999 nm
Wavelength selectionMonochromator
ApplicationWavelength scanning, end point, Kinetic, Area scan
Dynamic range0 ~ 4.0 OD
OD accuracy0 ~ 2 OD ±1%
OD linearity0 ~ 2 OD ±1%
OD repeatability0 ~ 2 OD ±1%
ShakingTwo step speed
DNA/RNA Micro Volume plate (NANO-V)24well / 2ul Sample (Option)
Weight7.5kg
Size333x303x245
SoftwareINNO X (Windows Software)
Supported software regressionLinear, Quadratic, Cubic, Log, Exponential, Linear logarithmic, point-to-point, 4PL


소프트웨어 사용 영상



INNO 소개 영상
